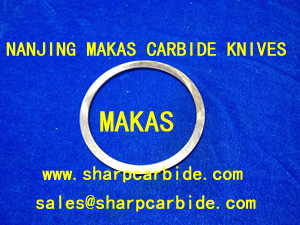

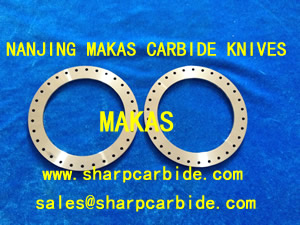

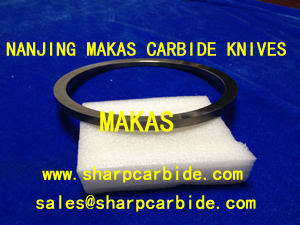

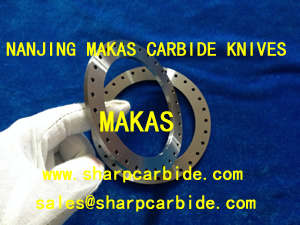

Tungsten Carbide Seal Rings / Cemented Carbide Seal Rings / Sintered Carbide Seal Rings / Solid Carbide Seal Rings / Cemented Carbide Mechanical Seal Rings / Solid Carbide Circular Rings

Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.

Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. Rapicut manufactures Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement.

Tungsten Carbide Seal Rings are generally made with Cobalt as binder material.
Technological process of production of tungsten carbide seal rings: powder process ¡ú formula according to the use requirements ¡ú wet grinding ¡ú mixing ¡ú smash ¡ú dry ¡ú sieving ¡ú add binder ¡ú dry again ¡ú get the mixture after sieving ¡ú pelletize ¡ú pressing ¡ú forming ¡ú sintering ¡ú forming (blank) ¡ú blanks checking ¡ú end face grinding ¡ú cylindrical coarse grinding ¡ú internal fine grinding ¡ú cylindrical fine grinding ¡ú chamfering ¡ú grooving ¡ú polishing ¡ú cleaning ¡ú dimension check ¡ú packaging ¡ú entering warehouse.


tungsten carbide seal rings cemented carbide seal rings
sintered carbide seal rings Tungsten Solid Carbide Mechanical Seal Rings
